Masung MS-CH362, Thermal Transfer Label Signs Printer with Auto Cutter

The MS-CH362 Safety Sign Label Printer Features:

Wide-Format Printing: Handles a broad range of label widths from 110 mm up to 320 mm (10″ printable width).

Durable Thermal Transfer Output: Produces scratch- and fade-resistant signs using resin, hybrid, or wax-based ribbons.

Automatic Operation: Features roll-fed, automatic paper feeding and an integrated cutter for efficient, convenient printing.

RFID Label Ready: Specifically designed to work with specialized label tapes that have embedded RFID chips.

Simple PC Connectivity: Connects via USB for straightforward layout, editing, and printing from a computer.

Robust Industrial Build: A heavy-duty machine (28.6 kg) built for reliable performance in various environments.

Inquire

Learn more about the MS-CH362 safety signage printer:

A robust wide-format thermal transfer label printer is engineered to meet the demanding needs of industrial signage and labeling. Designed for high-volume output, this safety sign label printer produces exceptionally durable labels with clear text that is both scratch-resistant and fade-resistant.

The MS-CH362 printer for signs stands out with its exceptional versatility. It accommodates a wide range of label materials, including standard roll-fed and perforated labels, as well as more durable aluminum alloy tags, all with a thickness under 0.38 mm. With the ability to handle label widths from 110 mm up to a generous 320 mm and a maximum printable width of 10 inches (252 mm), it is perfectly suited for both small and large-format applications.

Engineered for efficiency, this industrial sign printer simplifies the workflow from design to finished product. The built-in automatic paper cutter neatly severs each label upon job completion, eliminating the need for manual cutting and saving valuable time. With a reliable automatic sensor feed and a print speed of 2 inches per second, the MS-CH362 wide-format printer for signs is built for consistent, convenient, and rapid production runs. All editing, layout, and typesetting are managed through intuitive software on your connected PC, making the device itself remarkably simple to operate and maintain.

Built to last, this safety sign label printer features a solid, industrial-grade construction with a net weight of 28.6 kg, ensuring stability and durability in a workshop or factory setting. It is designed to perform reliably within a wide range of operating temperatures and humidity levels. This combination of rugged reliability, high-volume capability, and advanced features like RFID readiness makes this printer for safety sign labels an indispensable tool for individuals or businesses seeking a professional, long-lasting signage printing solution.



MS-CH380 sign printer applications



Weight 63 lbs

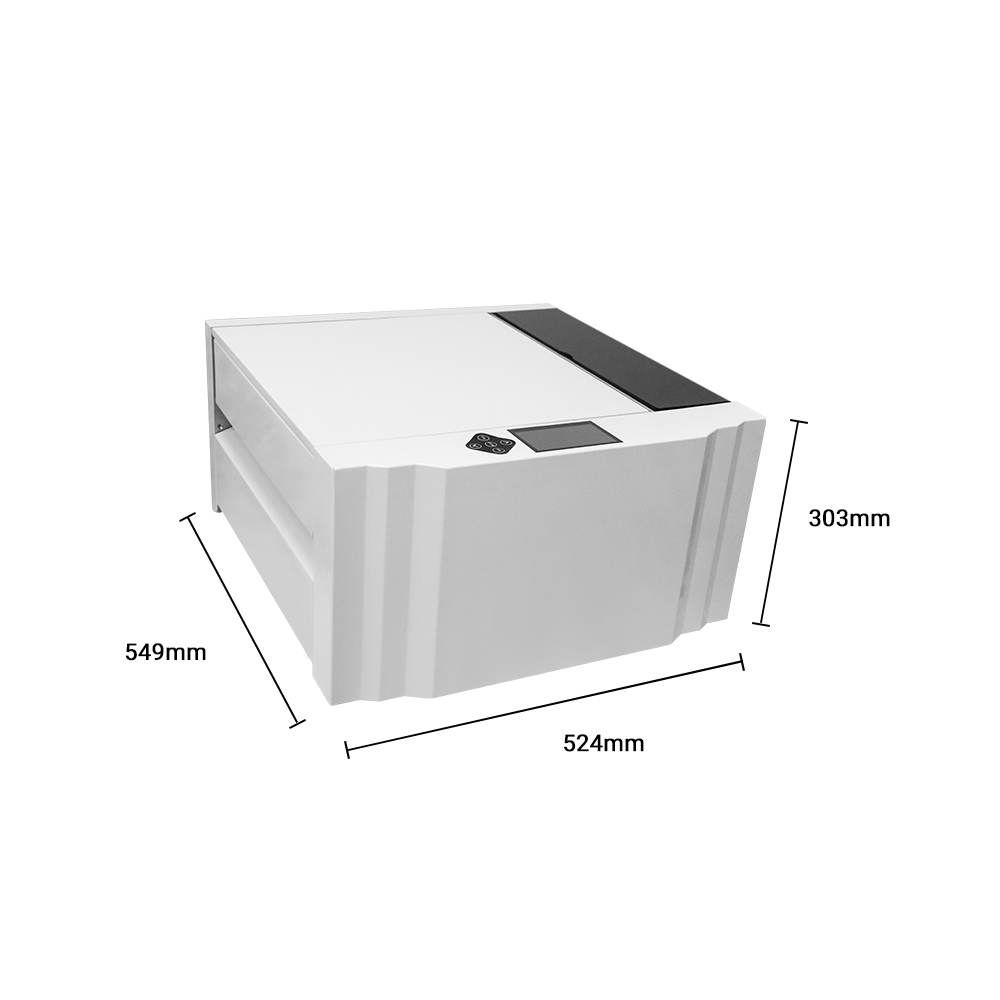

Dimensions 20.7 × 18.5 × 10.4 in
Model

MS-CH362

Compatible Paper Thickness

Labels under 0.38mm, Roll-fed Labels, Perforated Labels, Aluminum Alloy Labels

Paper Feed

Roll-fed, Automatic Sensor Feed

Print Resolution

203 DPI

Print Speed

2 inches/s

Paper Width

110mm-320mm

Printable Width

10 inches (252mm)

Ribbon Type

Resin-based, Hybrid-based, Wax-based (all with RFID)

Specialized Label Tape (with RFID Chip)

Width (110mm-320mm) x Length (20m), 3-inch core (76mm), Plugs on both ends, RFID chip attached to the left plug

Communication Interface

USB

Operating Voltage and Current

AC220V (±10%), 2A (max)

Operating Temperature

0°C-40°C (non-condensing)

Operating Relative Humidity

20-70% RH (non-condensing)

Storage Temperature (Complete)

-10-60°C (non-condensing)

Storage Temperature (Ribbon)

-10-40°C (non-condensing)

Storage Relative Humidity

10-90% RH (non-condensing)
